Dragino Waterproof Temp Sensor LTC-2 SI Weaved Metal P100

The information shown here also applies to other Dragino devices that use this same base hardware along with different sensor modules. Examples include:

Dragino LDDS20 Liquid Level

Dragino LSN50v2

Dragino LSN50v2

Dragino LDDS45, LDDS75

Dragino LDS03

Dragino CPL01 Outdoor Pulse Contact Sensor

Dragino LoRaWAN Leaf Moisture Sensor LLMS01

Dragino LoRaWAN Soil pH Sensor LSPH01

Dragino LDDS04 LoRaWAN 4-Channels Distance Sensor

Dragino LLDS12

Dragino Soil Moisture

Activation

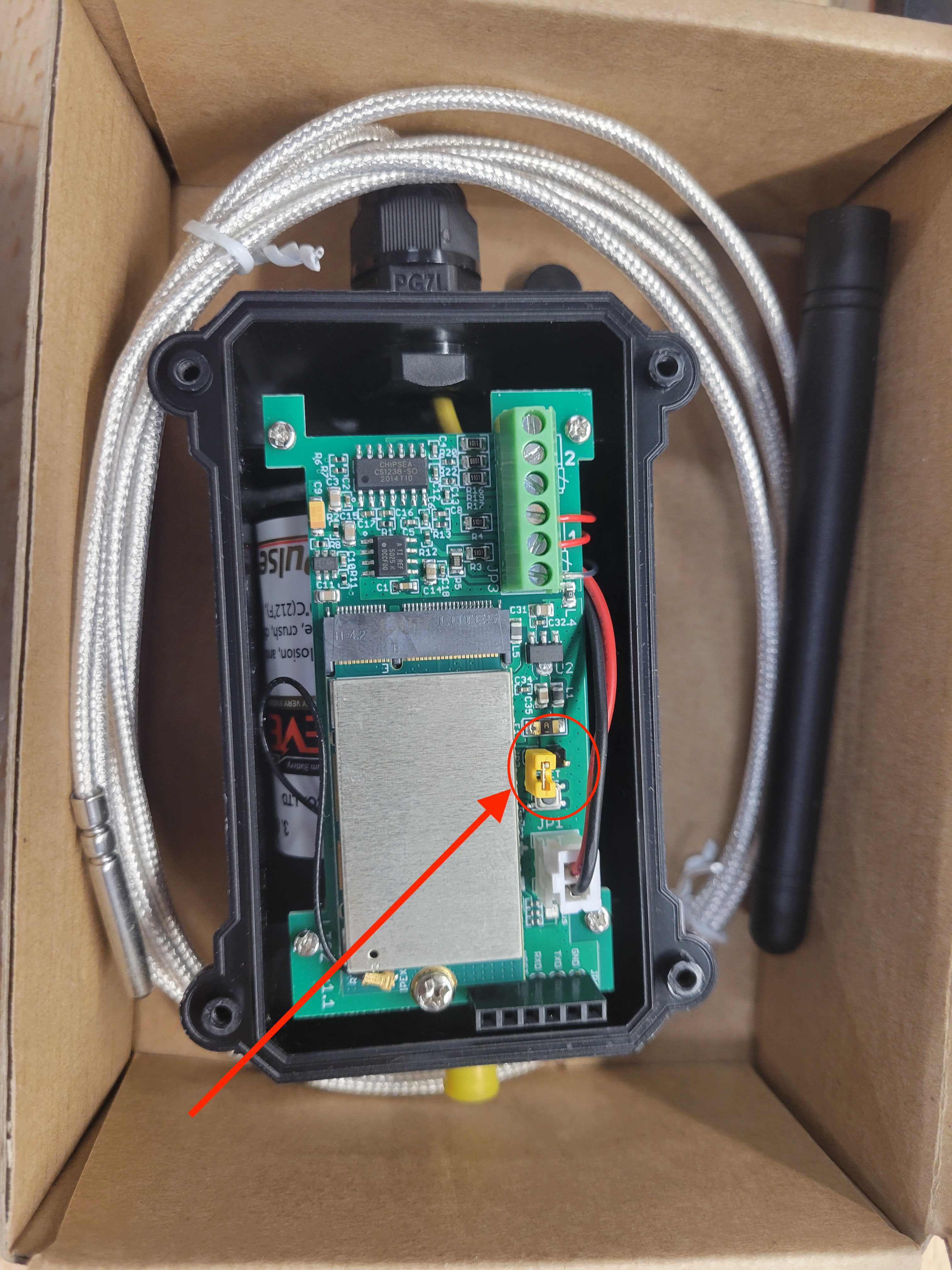

1. Remove the screws and the sensor cover and the to access the circuit board inside the sensor

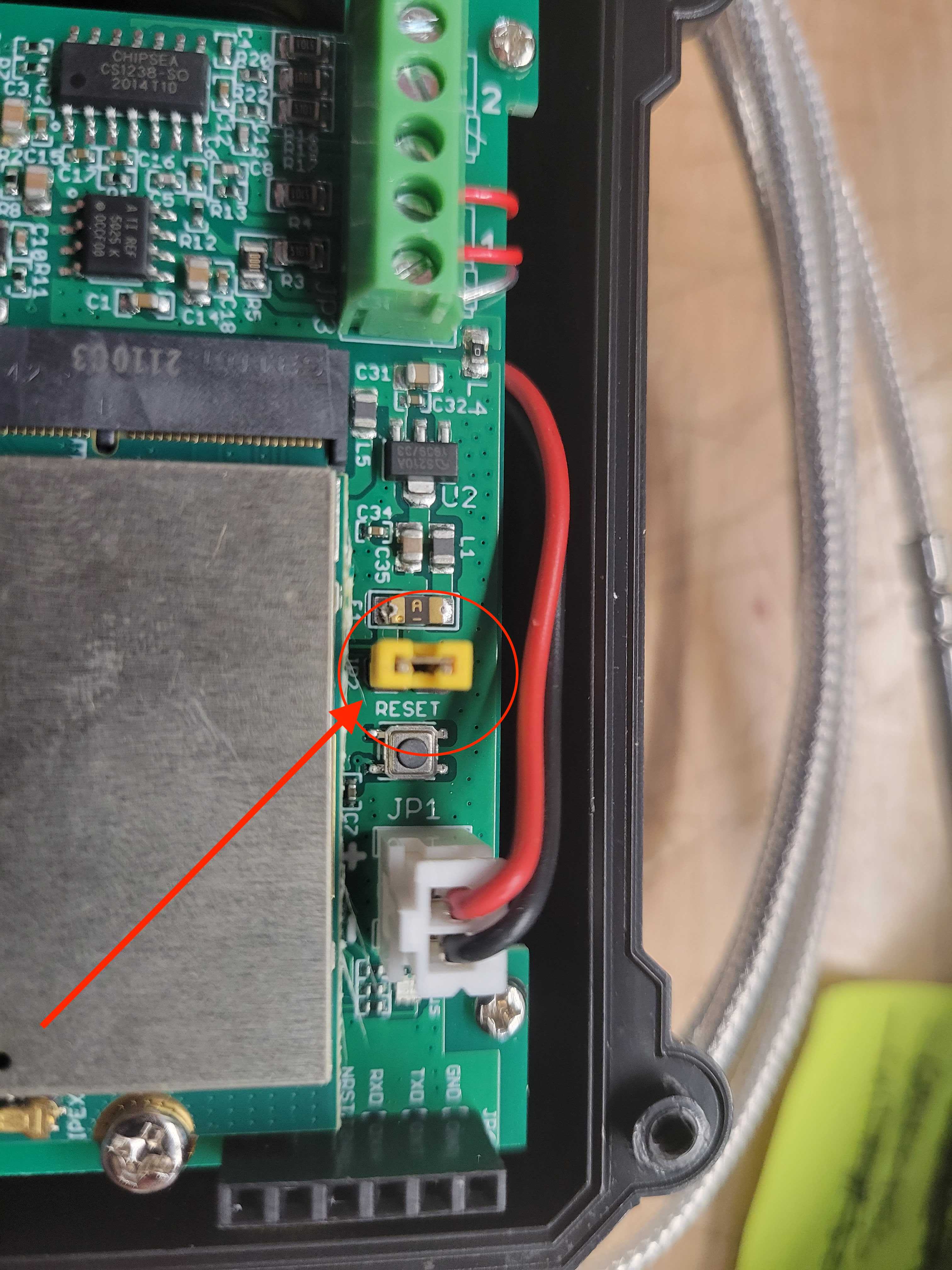

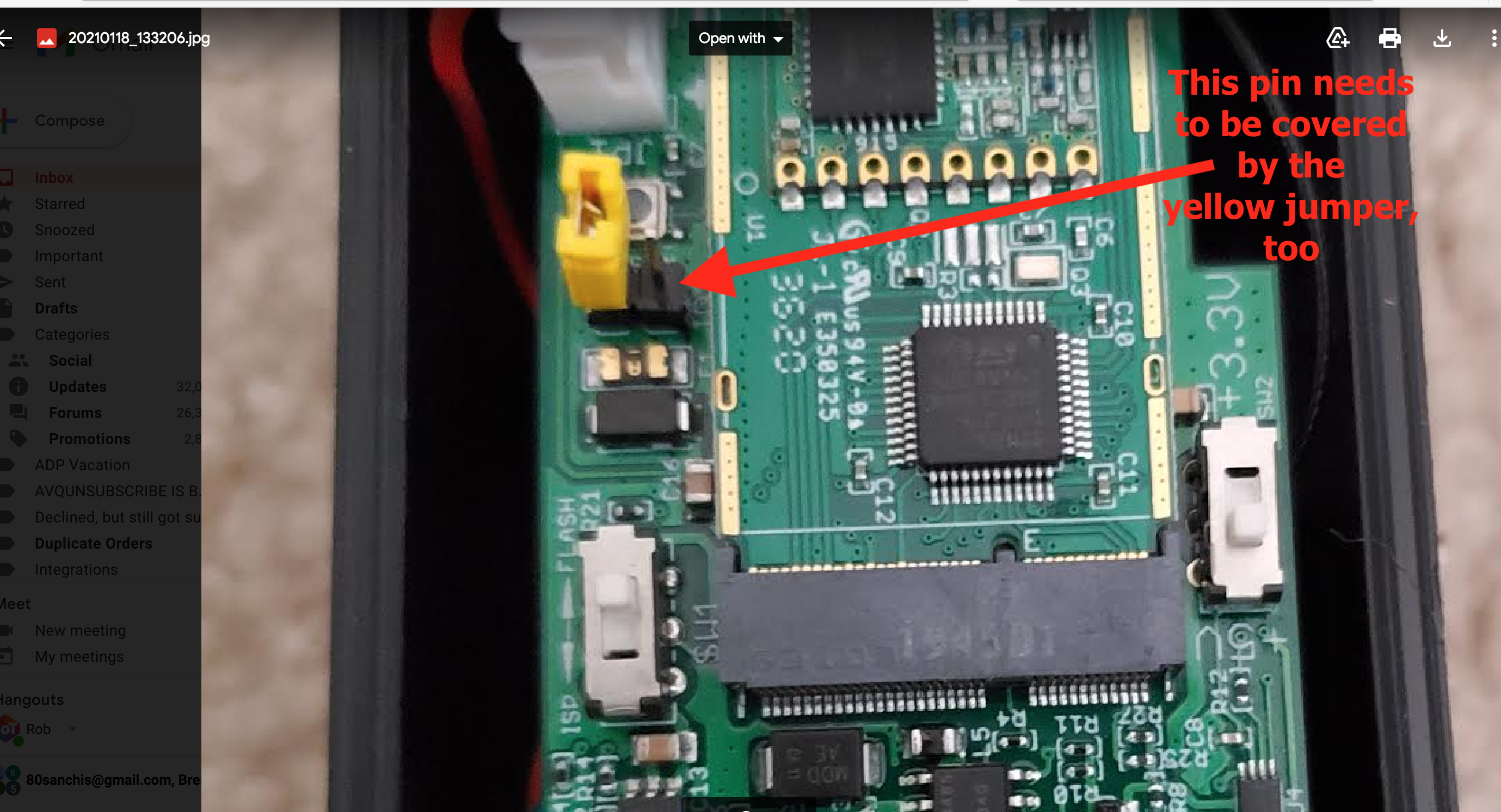

2. Remove the yellow jumper and place it on both pins. You’ll see an LED blink on the mother board when the jumper is placed in that orientation.



3. Screw the cover back onto the unit

4. Remove the plastic cap covering the antenna base, and screw the antenna securely onto the sensor

5. Insert probe through any manufacturer’s port available and hang sensor in ideal area

Reset

1. Remove the screws and the sensor cover and the to access the circuit board inside the sensor

2. Press the RESET button on the circuit board. You’ll see an LED blink on the circuit board to confirm the reset.

3. Screw the cover back onto the unit.
