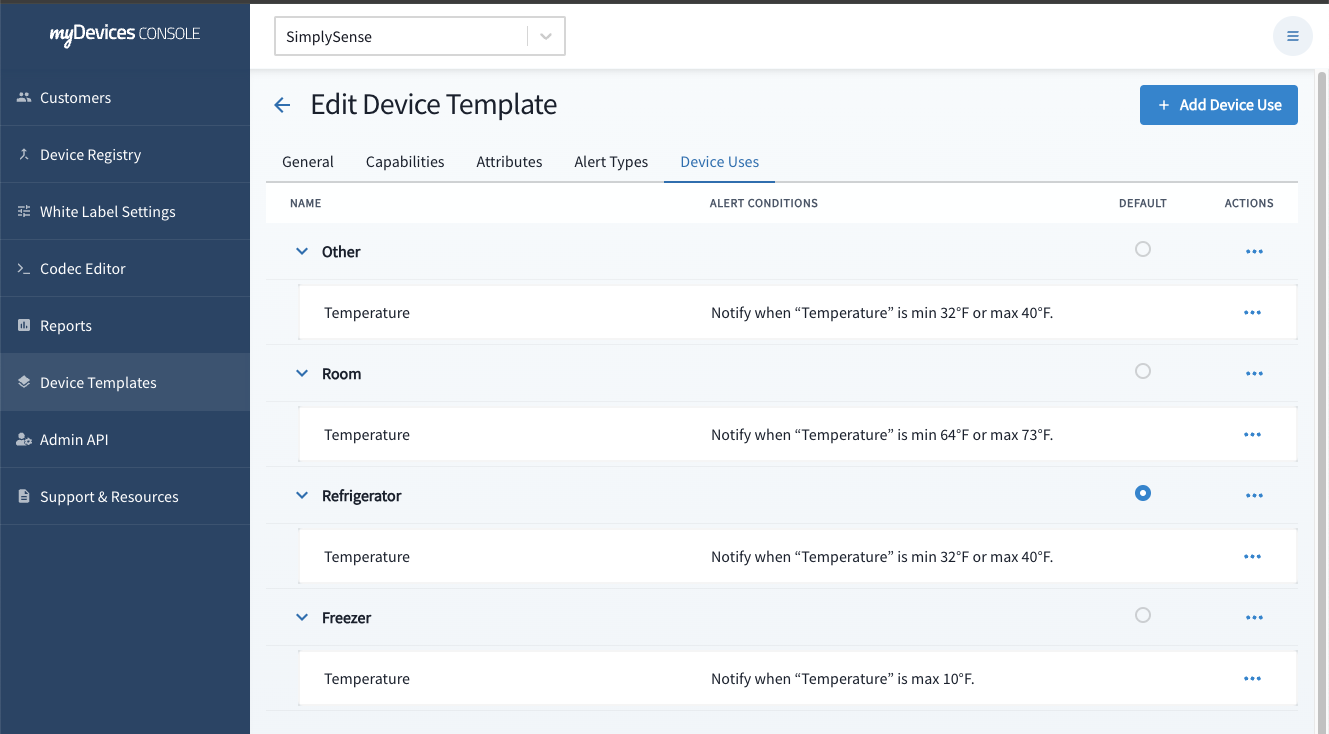

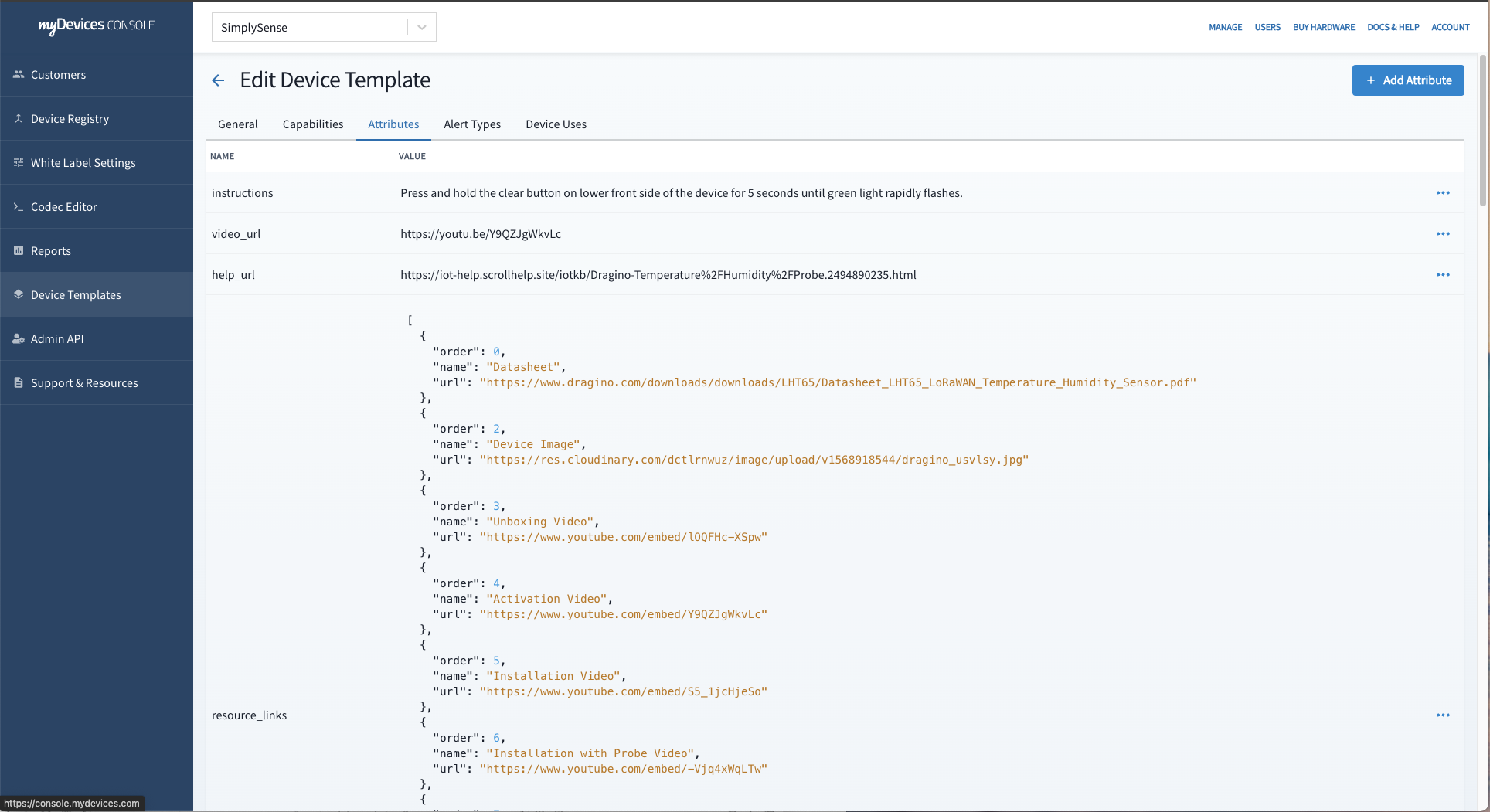

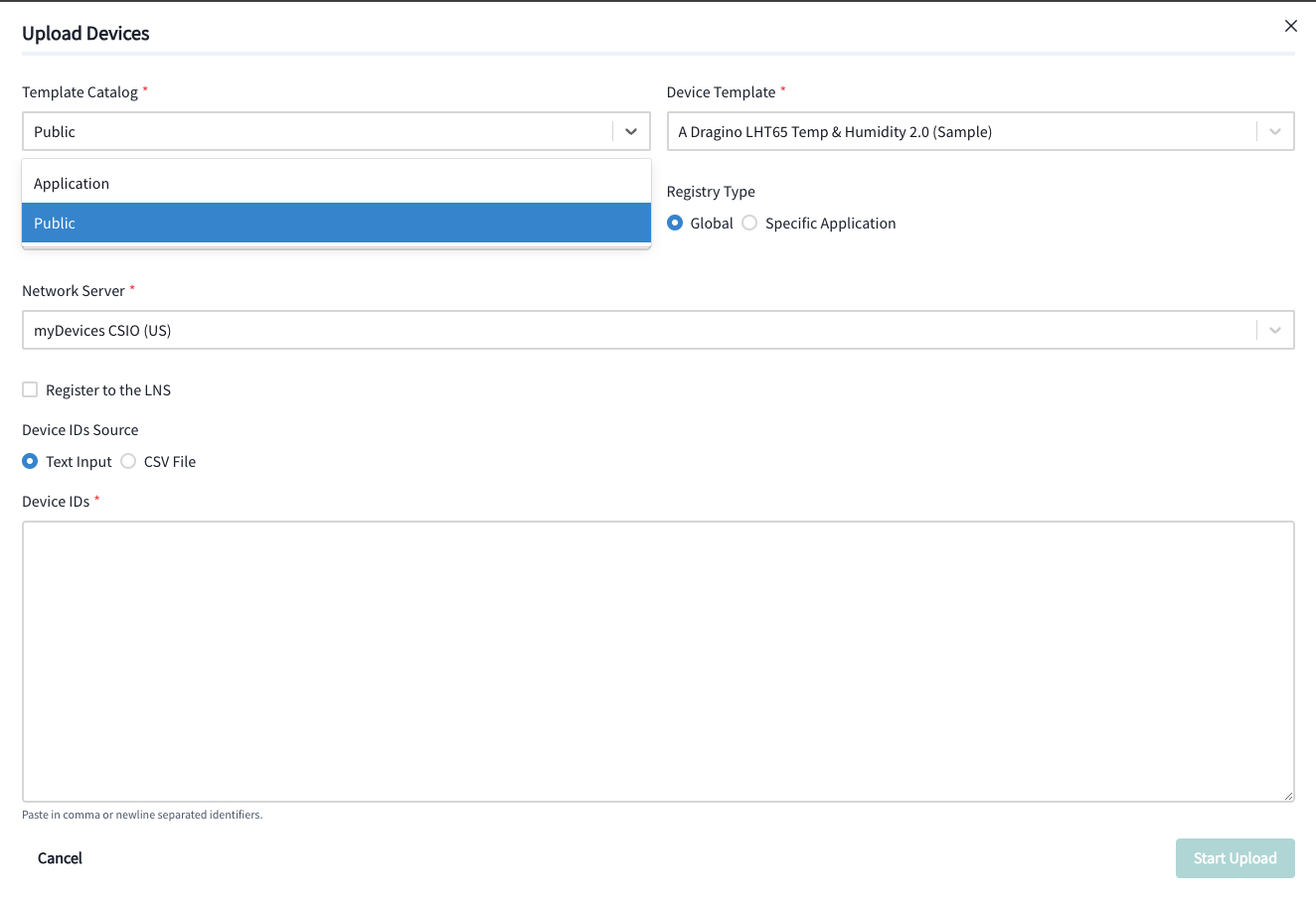

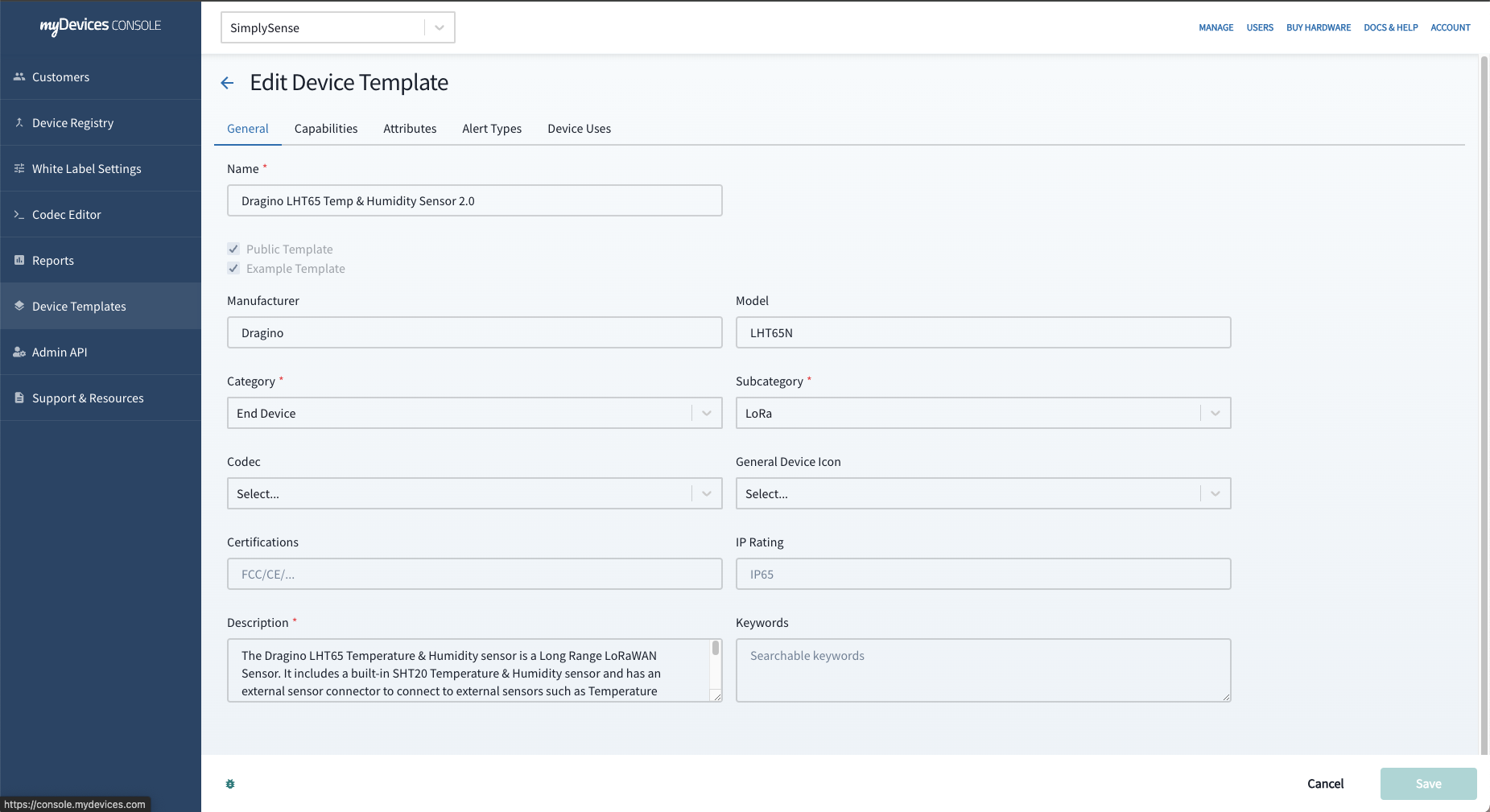

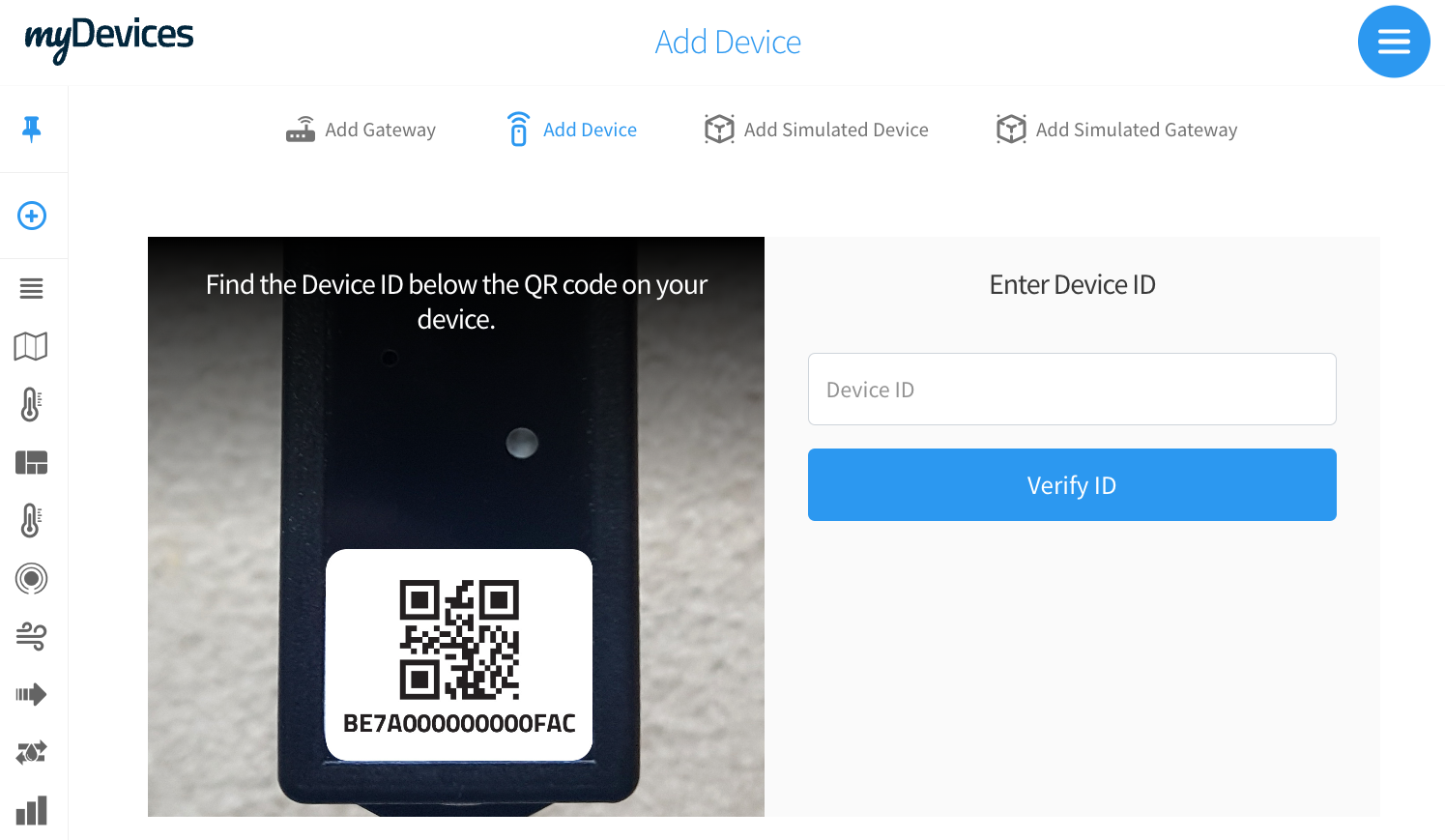

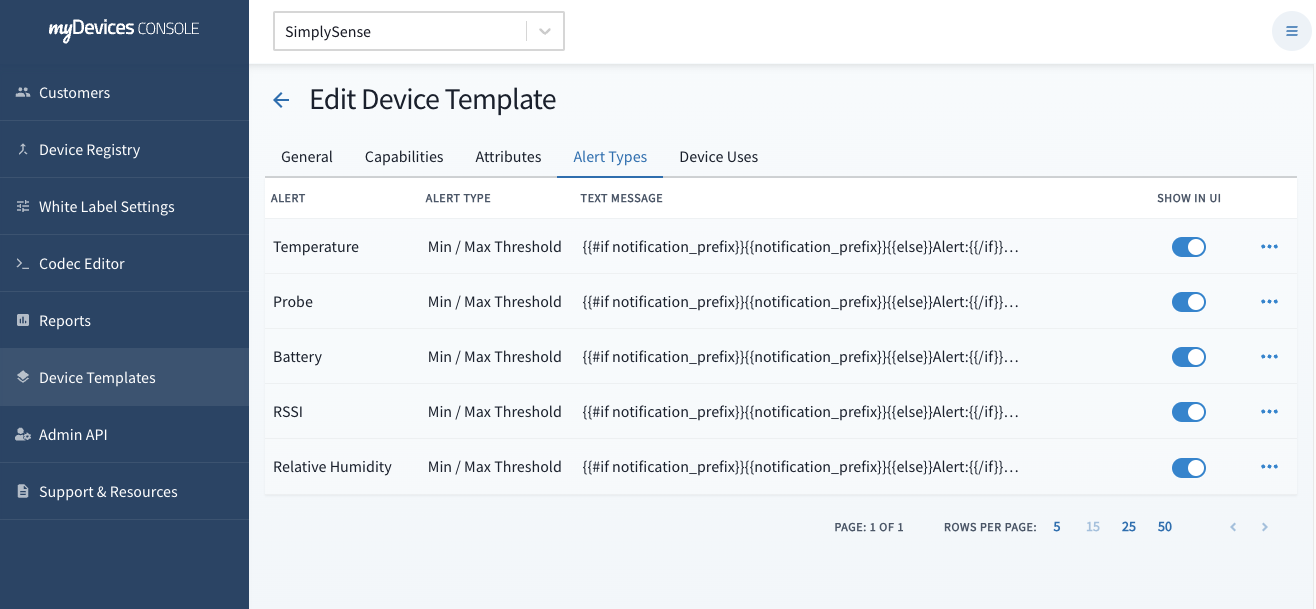

Creating Device Templates & Codec Editors for Custom Sensor Management

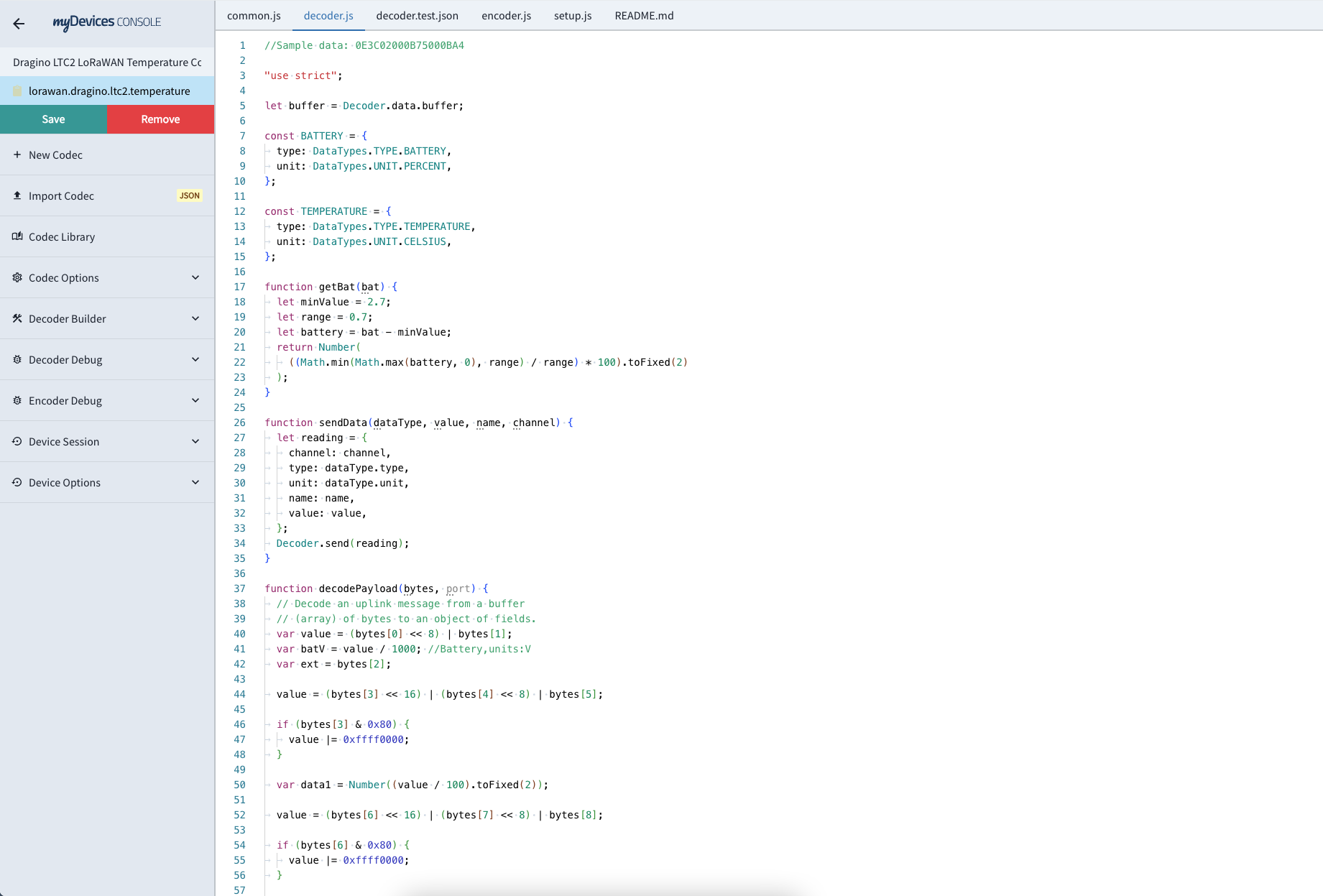

// Example Payload Decoder
// Test with 00F000C8
//    Temp = 24°C
//    Lum  = 200lux

const multiplier = 0.1;

// Could use console.log to help debugging Codec
console.log("multiplier = %d", multiplier);

// Decoder.data.buffer contains a Node.JS Buffer object with the payload data
// See https://nodejs.org/docs/latest-v18.x/api/buffer.html for more information
console.log("Decoder.data.buffer = %s", Decoder.data.buffer.toString("hex"));
const buffer = Decoder.data.buffer;

// Decoder.data.fport contains LoRaWAN fPort
// Could be used to filter uplink or adapt data decoding accordingly
console.log("Decoder.data.fport = %d", Decoder.data.fport);

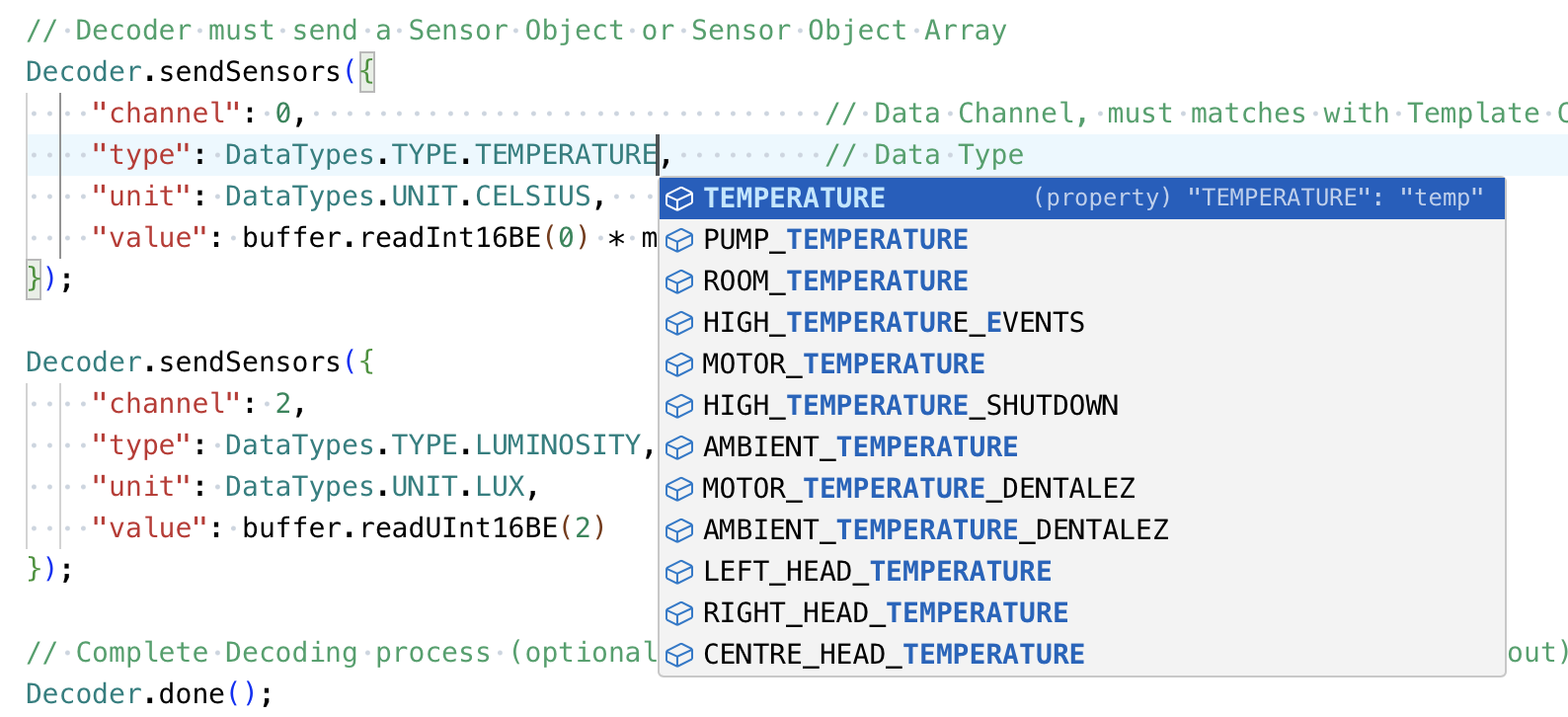

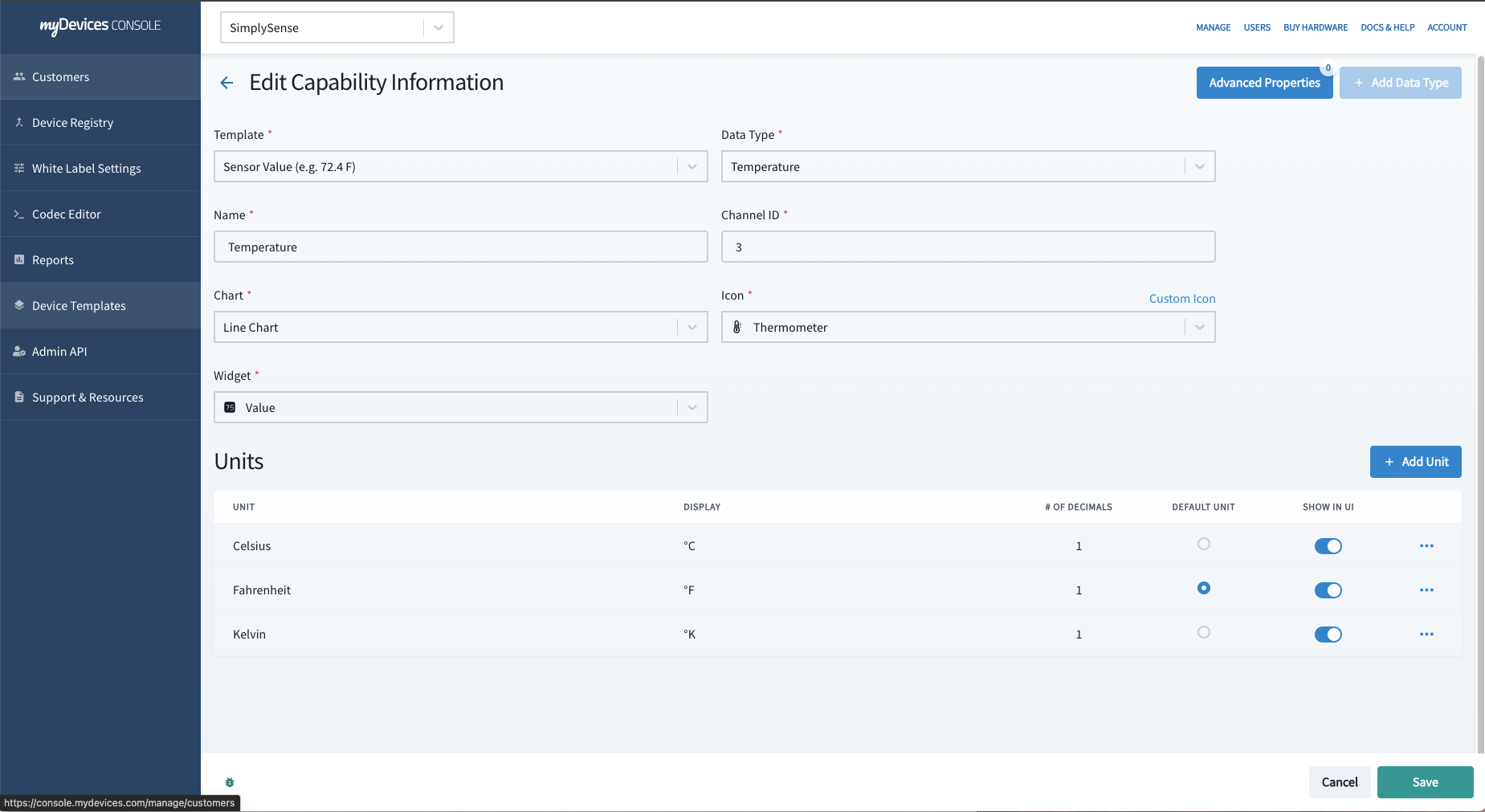

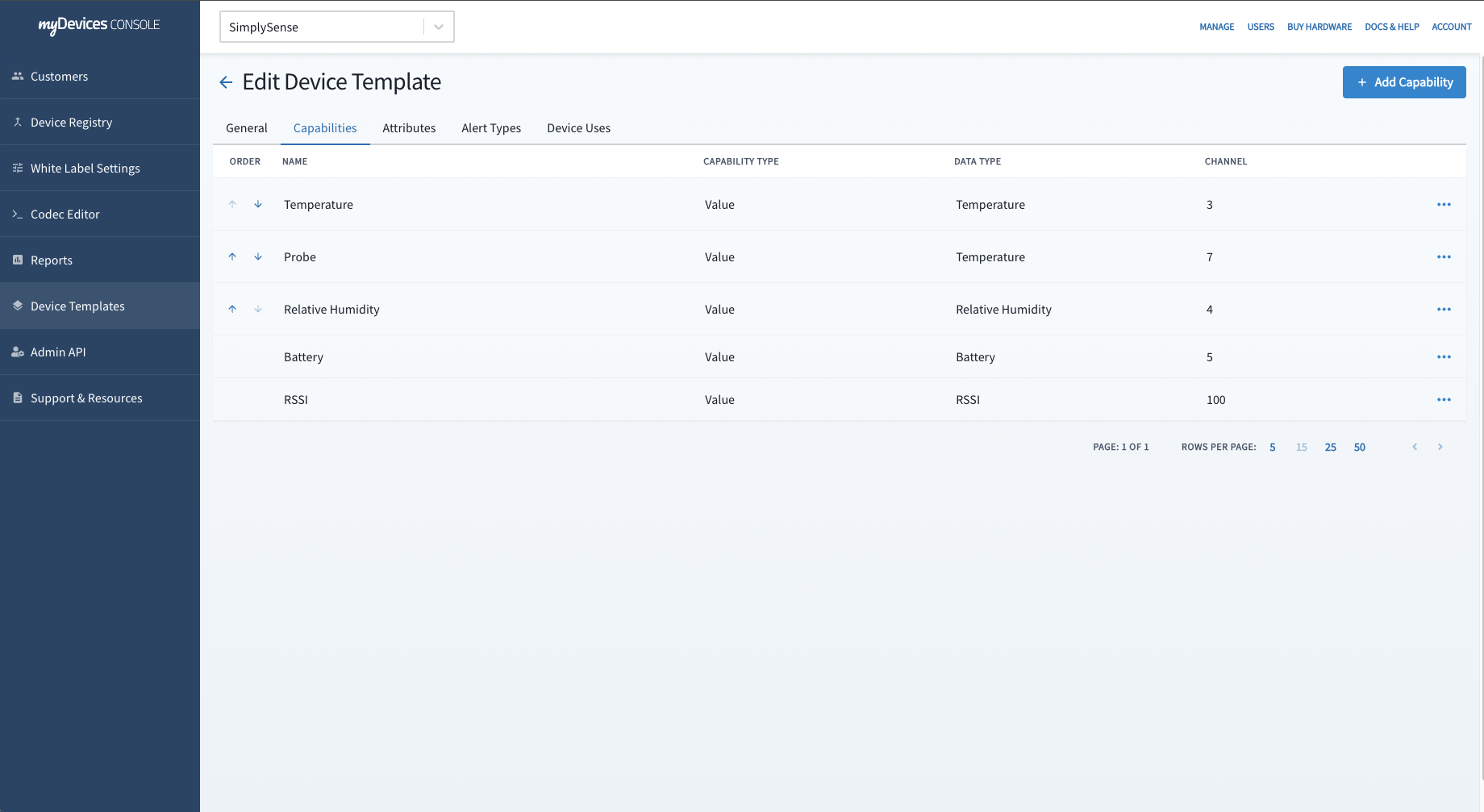

// Decoder must send a Sensor Object or Sensor Object Array
Decoder.sendSensors({
    channel: 0,                               // Data Channel, must matches with Template Capability
    type: DataTypes.TYPE.TEMPERATURE,         // Data Type
    unit: DataTypes.UNIT.CELSIUS,             // Data Unit
    value: buffer.readInt16BE(0) * multiplier // Data Value
});

Decoder.sendSensors({
    channel: 2,
    type: DataTypes.TYPE.LUMINOSITY,
    unit: DataTypes.UNIT.LUX,
    value: buffer.readUInt16BE(2)
});

// Complete Decoding process (optional, allows for faster response and prevent Codec timeout)
Decoder.done();

// Past your decodeUplink function
function decodeUplink(input) {
  // ... do something with input
  return output;
}

// Call it
const result = decodeUplink({
  bytes: Decoder.data.buffer,
  fPort: Decoder.data.fport,
  recvTime: new Date(Decoder.data.timestamp)
});

// Map and send sensor data
Decoder.sendSensors({
    channel: 1,
    type: DataTypes.TYPE.TEMPERATURE,
    unit: DataTypes.UNIT.CELSIUS,
    value: result.temperature
});

Decoder.done();

//Sample data, external DS18B20 sensor: 0B4501050248010105
//Sample data, external soil moisture sensor: 0B49FF3F024802
//Sample data, external tilting sensor: 0B450105024803

"use strict";

const DS18B20_SENSOR = 0x01;
const SOIL_MOISTURE_SENSOR = 0x01;
const TILTING_SENSOR = 0x01;

var buffer = Decoder.data.buffer;
var temperature = 23;

const {probe_offset = 0, internal_offset = 0, offset_unit = 'c', humidity_offset = 0} = Decoder.data.options;

function getTemperatureOffset(offset) {
    const offset_number = Number(offset);
    if (offset_unit == 'c') {
        return offset_number;
    }
    else if (offset_unit == 'f') {
        // we want to solve CtoF(temp) + OFFSET_F = CtoF(temp + OFFSET_C)
        // and compute OFFSET_C based on OFFSET_F provided by setting ...
        // CtoF(x) = x * 1.8 + 32
        // temp * 1.8 + 32 + OFFSET_F = (temp + OFFSET_C) * 1.8 + 32
        // temp * 1.8 + 32 + OFFSET_F = temp * 1.8 + 32 + OFFSET_C * 1.8
        // OFFSET_F = OFFSET_C * 1.8
        // OFFSET_C = OFFSET_F / 1.8
        return offset_number / 1.8;
    }
}

function decodeTemperature(offset, channel, name, temperature_offset = 0) {
    let value = buffer.readInt16BE(offset);
    let tempValue = Number((value / 100).toFixed(2));

    /**
    * @author: Adrian
  * @comment: Do not send probe reading if value is equal to 327
    * @date: 09/04/2019
    */
    if (Math.floor(tempValue) != 327) {
        Decoder.send({
          channel: channel,
          type: DataTypes.TYPE.TEMPERATURE,
          unit: DataTypes.UNIT.CELSIUS,
          value: Number((value / 100).toFixed(2)) + temperature_offset,
          name: name
      });
        //Save the internal temperature
        if (channel == 3) {
            temperature = tempValue;
        }
    }

}
decodeTemperature(2, 3, 'Internal Temp', getTemperatureOffset(internal_offset));
Decoder.send({
    channel: 4,
    type: DataTypes.TYPE.RELATIVE_HUMIDITY,
    unit: DataTypes.UNIT.PERCENT,
    value: Number((buffer.readUInt16BE(4) / 10).toFixed(1)) + humidity_offset,
    name: 'Humidity'
});
var external_sensor = buffer.readUInt8(6);
switch(external_sensor){
    case DS18B20_SENSOR:
        decodeTemperature(7, 7, 'Probe Temp', getTemperatureOffset(probe_offset));
        break

    case SOIL_MOISTURE_SENSOR:
        //Format not yet defined
        break

    case TILTING_SENSOR:
        //Format not yet defined
        break
}

//Calculate battery percent using trendline from real world temperature/voltage data
let maxValue = 2914 + 6.25 * temperature + -0.0793 * Math.pow(temperature, 2);
if (temperature > 39) {
  maxValue = 3040;
}
if (temperature < -40) {
  maxValue = 2540;
}
console.log(maxValue)
let minValue = 2400;
let range = maxValue - minValue;
let battery = (buffer.readUInt16BE(0) & 0x3FFF) - minValue;
let batteryPercent = Number((Math.min(Math.max(battery, 0), range) / range * 100).toFixed(2));
Decoder.send({
    channel: 5,
    type: DataTypes.TYPE.BATTERY,
    unit: DataTypes.UNIT.PERCENT,
    value: batteryPercent,
    name: 'Battery'
});
console.log("Voltage: " + (buffer.readUInt16BE(0) & 0x3FFF) / 1000);
Decoder.send({
    channel: 500,
    type: DataTypes.TYPE.VOLTAGE,
    unit: DataTypes.UNIT.MILLIVOLTS,
    value: buffer.readUInt16BE(0) & 0x3FFF,
    name: 'Battery Voltage'
});
Decoder.done();

// here goes the decoder source code
//sample payload 0100000400000362f15ee2

/*
0000010c000000630dfe31
0000010d00000e630e057f

{"reset":8.30, "timezone":"America/New_York", "vol_unit":"m3","prox_unit":"m"}

*/
const buffer = Decoder.data.buffer;
const port = Decoder.data.fport;
const session = Decoder.data.session;
const options = Object.assign({ timezone: "UTC", reset: 0}, Decoder.data.options);
const SESSION_EXPIRES = 60 * 20;
if (!session.hasOwnProperty("battery")) {
    session.battery = 100;
}

const ALARM = {
    channel: 500,
    type: DataTypes.TYPE.ALARM,
    unit: DataTypes.UNIT.undefined,
    name: "Alarm"
};

const DOOR = {
    type: DataTypes.TYPE.OPENCLOSED,
    unit: DataTypes.UNIT.undefined,
};

const VALUE = {
    type: DataTypes.TYPE.VALUE_NULL,
    unit: DataTypes.UNIT.NULL,
}

const TIME = {
    type: DataTypes.TYPE.TIME,
    unit: DataTypes.UNIT.MINUTES,
};

const BATTERY = {
    channel: 5,
    type: DataTypes.TYPE.BATTERY,
    unit: DataTypes.UNIT.PERCENT,
    name: "Battery"
};

function sendData(dataType, value, channel, name) {
    let reading = {
        channel: dataType.channel ? dataType.channel : channel,
        type: dataType.type,
        unit: dataType.unit,
        name: dataType.name ? dataType.name : name,
        value: value,
    };
    console.log(reading);
    Decoder.send(reading);
}

function getLastReset(hour) {
    if (hour == 24) {
        hour = 0;
    }

    const [h, m=0] = hour.toString().replace(/\./g, ':').split(':')

    const now = new Date();

    // compute offset
    const utcTime = now.toLocaleString("en-US", { timeZone: "UTC" });
    const localTime = now.toLocaleString("en-US", { timeZone: options.timezone });
    const offset = Date.parse(localTime) - Date.parse(utcTime);

    // get local day
    const fakeTime = now.getTime() - h * 3600000 - m * 60000 + offset;
    const localDay = Math.floor(fakeTime / (24 * 3600000));

    // substract offset to get UTC time from local
    const resetTimestamp = (localDay) * 24 * 3600000 + h * 3600000 + m * 60000 - offset;

    console.log({
        utcTime,
        utcResetTime: new Date(resetTimestamp).toLocaleString("en-US", { timeZone: "UTC" }),
        localTime,
        localResetTime: new Date(resetTimestamp).toLocaleString("en-US", { timeZone: options.timezone }),
    });

    return resetTimestamp;
}

function sendDoorStats(open_status){
    const now = Date.now();
    const last_reset = getLastReset(options.reset);
    const last_hour = now - 3600000;

    const last_open_at = session.last_open_at || now;
    const last_open_status = session.last_open_at > 0;
    let open_count = session.open_count || 0;
    let last_open_duration = now - last_open_at;

    function getFilter(reset_time) {
        return ({ closed_at }) => closed_at > reset_time;
    }

    function getDuration(reset_time) {
        return (duration, { open_at, closed_at }) => duration + closed_at - Math.max(open_at, reset_time);
    }

    if (!session.open_data) {
        session.open_data = [];
    }

    if (!open_status) {
        if (last_open_status) {
            // now closed
            open_count++;
            session.open_data.push({
                open_at: last_open_at,
                closed_at: now,
            });
            session.last_open_at = null;
            session.open_count = open_count;
        }
        else {
            // still closed
            const { open_at=0, closed_at=0 } = session.open_data.slice(-1).pop() || {};
            last_open_duration = closed_at - open_at;
        }
    }

    const last_reset_data = session.open_data.filter(getFilter(last_reset));
    const last_hour_data = session.open_data.filter(getFilter(last_hour));

    let daily_count = last_reset_data.length;
    let hourly_count = last_hour_data.length;
    let daily_duration = last_reset_data.reduce(getDuration(last_reset), 0);
    let hourly_duration = last_hour_data.reduce(getDuration(last_hour), 0);
    let daily_critical_count = last_reset_data.filter(({ open_at, closed_at }) => closed_at - open_at >= 60000).length;

    if (open_status) {
        const current_duration = now - last_open_at;

        daily_duration += now - Math.max(last_open_at, last_reset);
        hourly_duration += now - Math.max(last_open_at, last_hour);
        daily_critical_count += (now - Math.max(last_open_at, last_reset) >= 60000) ? 1 : 0;
        daily_count++;
        hourly_count++;
        open_count++;

        if (!last_open_status) {
            // now open
            session.last_open_at = now;
        }
        else {
            // still open
        }
    }

    sendData(VALUE, open_count, 144, "Door Open Count");
    sendData(VALUE, daily_critical_count, 150, "Last 24Hrs Door Open Count (+1min)");
    sendData(DOOR, daily_critical_count > 0 ? 1 : 0, 151, "Last 24Hrs Door Open for +1min");
    sendData(VALUE, hourly_count, 501, "Last Hour Door Open Count");
    sendData(VALUE, daily_count, 503, "Last 24Hrs Door Open Count");
    sendData(TIME, getFixed(last_open_duration/60000), 168, "Last Open Duration");
    sendData(TIME, getFixed(hourly_duration/60000), 502, "Last Hour Door Open Duration");
    sendData(TIME, getFixed(daily_duration/60000), 504, "Last 24Hrs Door Open Duration");

    session.open_data = last_reset_data;
}

function datalog(i, bytes) {
    var aa = bytes[0 + i] & 0x02 ? "TRUE" : "FALSE";
    var bb = bytes[0 + i] & 0x01 ? "OPEN" : "CLOSE";
    var cc = (
        (bytes[1 + i] << 16) |
        (bytes[2 + i] << 8) |
        bytes[3 + i]
    ).toString(10);
    var dd = (
        (bytes[4 + i] << 16) |
        (bytes[5 + i] << 8) |
        bytes[6 + i]
    ).toString(10);
    var ee = getMyDate(
        (
            (bytes[7 + i] << 24) |
            (bytes[8 + i] << 16) |
            (bytes[9 + i] << 8) |
            bytes[10 + i]
        ).toString(10)
    );
    var string =
        "[" + aa + "," + bb + "," + cc + "," + dd + "," + ee + "]" + ",";

    return string;
}

function getzf(c_num) {
    if (parseInt(c_num) < 10) c_num = "0" + c_num;

    return c_num;
}

function getMyDate(str) {
    var c_Date;
    if (str > 9999999999) c_Date = new Date(parseInt(str));
    else c_Date = new Date(parseInt(str) * 1000);

    var c_Year = c_Date.getFullYear(),
        c_Month = c_Date.getMonth() + 1,
        c_Day = c_Date.getDate(),
        c_Hour = c_Date.getHours(),
        c_Min = c_Date.getMinutes(),
        c_Sen = c_Date.getSeconds();
    var c_Time =
        c_Year +
        "-" +
        getzf(c_Month) +
        "-" +
        getzf(c_Day) +
        " " +
        getzf(c_Hour) +
        ":" +
        getzf(c_Min) +
        ":" +
        getzf(c_Sen);

    return c_Time;
}

function decoder(bytes, port) {
    if (port == 0x02) {
        var alarm = bytes[0] & 0x02 ? 1 : 0;
        var door_open_status = bytes[0] & 0x01 ? 1 : 0;
        var open_times = (bytes[1] << 16) | (bytes[2] << 8) | bytes[3];
        var open_duration = (bytes[4] << 16) | (bytes[5] << 8) | bytes[6];
        var data_time = getMyDate(
            (
                (bytes[7] << 24) |
                (bytes[8] << 16) |
                (bytes[9] << 8) |
                bytes[10]
            ).toString(10)
        );
        //console.log(bytes.length);
        if (bytes.length == 11) {
            return {
                ALARM: alarm,
                DOOR_OPEN_STATUS: door_open_status,
                DOOR_OPEN_TIMES: open_times,
                LAST_DOOR_OPEN_DURATION: open_duration,
                TIME: data_time,
            };
        }
    } else if (port == 0x03) {
        for (var i = 0; i < bytes.length; i = i + 11) {
            var data = datalog(i, bytes);
            if (i == "0") data_sum = data;
            else data_sum += data;
        }
        return {
            DATALOG: data_sum,
        };
    } else if (port == 0x04) {
        var tdc = (bytes[0] << 16) | (bytes[1] << 8) | bytes[2];
        var disalarm = bytes[3] & 0x01;
        var keep_status = bytes[4] & 0x01;
        var keep_time = (bytes[5] << 8) | bytes[6];

        return {
            TDC: tdc,
            DISALARM: disalarm,
            KEEP_STATUS: keep_status,
            KEEP_TIME: keep_time,
        };
    } else if (port == 0x05) {
        var sub_band;
        var freq_band;

        if (bytes[0] == 0x0a) var sensor = "LDS03A";

        if (bytes[4] == 0xff) sub_band = "NULL";
        else sub_band = bytes[4];

        if (bytes[3] == 0x01) freq_band = "EU868";
        else if (bytes[3] == 0x02) freq_band = "US915";
        else if (bytes[3] == 0x03) freq_band = "IN865";
        else if (bytes[3] == 0x04) freq_band = "AU915";
        else if (bytes[3] == 0x05) freq_band = "KZ865";
        else if (bytes[3] == 0x06) freq_band = "RU864";
        else if (bytes[3] == 0x07) freq_band = "AS923";
        else if (bytes[3] == 0x08) freq_band = "AS923_1";
        else if (bytes[3] == 0x09) freq_band = "AS923_2";
        else if (bytes[3] == 0x0a) freq_band = "AS923_3";
        else if (bytes[3] == 0x0b) freq_band = "CN470";
        else if (bytes[3] == 0x0c) freq_band = "EU433";
        else if (bytes[3] == 0x0d) freq_band = "KR920";
        else if (bytes[3] == 0x0e) freq_band = "MA869";

        var firm_ver =
            (bytes[1] & 0x0f) +
            "." +
            ((bytes[2] >> 4) & 0x0f) +
            "." +
            (bytes[2] & 0x0f);
        var bat = ((bytes[5] << 8) | bytes[6]) / 1000;

        return {
            SENSOR_MODEL: sensor,
            FIRMWARE_VERSION: firm_ver,
            FREQUENCY_BAND: freq_band,
            SUB_BAND: sub_band,
            BAT: bat,
        };
    }
}

function getBat(bat) {
    let minValue = 3;
    let range = 0.5;
    let battery = bat - minValue;
    return Number(
        ((Math.min(Math.max(battery, 0), range) / range) * 100).toFixed(2)
    );
}
function getFixed(value, decimal = 2) {
    try {
        return Number(value.toFixed(decimal));
    } catch (error) {}
    return value;
}


if(port == 2){
    const data = decoder(buffer, port);
console.log("data", data)
    if (data.ALARM != null) {
        sendData(ALARM, data.ALARM);
    }
    if (data.DOOR_OPEN_STATUS != null) {
        sendData(DOOR, data.DOOR_OPEN_STATUS, 244, "Door Open Status");
        sendData(DOOR, data.DOOR_OPEN_STATUS, 245, "Door Open Status FP");
        sendData(DOOR, data.DOOR_OPEN_STATUS, 246, "Door Open Status AH");
    }
    sendDoorStats(data.DOOR_OPEN_STATUS);
    sendData(BATTERY, session.battery);
}
else if (port == 5){
    const data = decoder(buffer, port);
console.log("data", data)
    if (data.BAT) {
        session.battery = getBat(data.BAT);
        sendData(BATTERY, session.battery);
    }
}
Decoder.saveSession(session, SESSION_EXPIRES);

Decoder.done();

//This is a version of the Dragino LDDS75 Distance Detection (Level) codec that uses a rolling average for the level.
//Sample data: 4b3a02000009000000
//Sample options for level/volume calculations
//Height: {"height": 1, "measurement": "HEIGHT", "orientation": "horizontal", "name": "rectangle"}
//Volume: {"measurement": "VOLUME", "orientation": "horizontal", "name": "cylinder", "eq": "PI * l * r^2", "eqp": "l * (r^2 * acos((r-x)/r) - (r-x)* sqrt(2*r*x - x^2) )", "capacity": 1.571, "equation_unit": "cm", "d": 1, "l": 2, "vol_unit": "m3", "prox_unit": "m"}

"use strict";

const READINGS = 30;
const SESSION_EXPIRES = 60 * 60 * 24 * 7;

let buffer = Decoder.data.buffer;
const options = Object.assign({}, Decoder.data.options);
let session = Decoder.data.session;
let sensors = [];
//LandCommand requested a 6 inch (15.24 cm) reset distance so that is the default unless a template overrides it.
let resetDistance = options.resetDistance ? options.resetDistance : 15.24;

if (!session.levels) {
    session.levels = [];
}

//Newly added distance to container in all equations.
if (!options.dtc) {
    options.dtc = 0;
}

function getFixed(value, decimal = 2) {
  try {
    return Number(value.toFixed(decimal));
  } catch (error) {}
  return value;
}

function getAverage() {
    return session.levels.reduce((a, b) => a + b) / session.levels.length;
}

function evaluate(options) {
  try {
    const math = require("mathjs");
    const _ = require("lodash");
    const parser = math.parser();
    _.forEach(options, (v, k) => {
      parser.set(k, v);
    });
    let result = parser.eval(options.eqp);
    return result;
  } catch (e) {
    console.error(e);
  }
}

function computeVerticalLevel(options) {
  //we have x and we need to calculate the difference

  //if ht was not specified usually is the same as basis
  if (!options.ht) options.ht = options.hb;

  //for the rest of the cases the difference is embeded in equations
  options.hT =
    options.x - options.hb - options.hl > 0
      ? options.x - options.hb - options.hl
      : 0;
  options.hB = options.x - options.hb > 0 ? options.hb : options.x;
  options.hL =
    options.x - options.hb < 0
      ? 0
      : options.x - options.hb - options.hl > 0
      ? options.hl
      : options.x - options.hb;

  return options;
}

//set options.x when computing volume
function computeVolume(options) {
  let total = 0,
    partial = 0;
  //if there is a diameter compute radius from it
  if (options.d) {
    options.r = options.d / 2;
  }

  if (
    (options.orientation === "vertical" &&
      options.name.startsWith("cylinder")) ||
    options.name === "oval"
  ) {
    options.hl = options.h;
    if (options.name === "oval") {
      //do here some tricks on the variables to be able to compute as a vertical level complex equation
      if (options.orientation === "vertical") {
        options.a = options.h - options.w;
        options.r = options.w / 2;
        options.d = options.w;
        //now doing some workarounds for devices
        options.hb = options.ht = options.r;
        options.hl = options.a;
        options = computeVerticalLevel(options);
      } else {
        options.r = options.h / 2;
        options.a = options.w - options.h;
      }
    } else {
      options = computeVerticalLevel(options);
    }
  }
  partial = evaluate(options);
  if (typeof partial !== "number") {
    throw new Error("Invalid number");
  }
  return {
    total,
    partial,
  };
}

function sendLevel(distance) {
  let percent = null;
    if (options.dtc) {
        options.dtc *= 100;
        distance = Math.max(distance - options.dtc, 0);
    }

  if (options.measurement === "VOLUME") {
    //all other prox data from options is in meters
    //level comes in cm
    //in order to normalize data
    //we need to convert it to m
    options.x = distance / 100;
    var computedVolume = 0;
    try {
      const { total, partial } = computeVolume(options);
      percent = options.capacity
        ? (partial * 100) / options.capacity
        : null;
      computedVolume = partial;
    } catch (e) {
      //input data comes in meters so change height to cm
      console.error(e);
    }
    sensors.push({
      channel: 26,
      type: DataTypes.TYPE.VOLUME,
      unit: DataTypes.UNIT.CUBIC_METER,
      value: getFixed(computedVolume < 0 ? 0 : computedVolume, 3),
      name: "Volume",
    });
  } else {
    //input data comes in meters so change height to cm
    options.height = options.height ? options.height * 100 : null;
    percent = options.height
      ? ((options.height - distance) * 100) / options.height
      : null;
  }

    sensors.push({
    channel: 23,
    type: DataTypes.TYPE.PROXIMITY,
    unit: DataTypes.UNIT.CENTIMETER,
    value: getFixed(distance),
    name: "Distance",
  });
    if (options.height) {
    let level = options.height >= distance ? options.height - distance : 0;
        if (session.lastDistance < resetDistance && distance < resetDistance) {
            //Reset the level average to 100% if we get two readings in a row that are less than the reset difference.
            level = options.height;
            session.levels = [];
        }
        session.lastDistance = distance;
        session.levels.push(level);
        while(session.levels.length > READINGS) {
            session.levels.shift();
        }
        level = getAverage(session.levels);
      percent = level * 100 / options.height;

      sensors.push({
      channel: 24,
      type: DataTypes.TYPE.PROXIMITY,
      unit: DataTypes.UNIT.CENTIMETER,
      value: getFixed(level, 3),
      name: "Level",
    });
  }
    percent = Math.ceil(percent/10)*10;
  sensors.push({
    channel: 25,
    type: DataTypes.TYPE.PERCENTAGE,
    unit: DataTypes.UNIT.PERCENT,
    value: getFixed(percent < 0 ? 0 : percent),
    name: "Percentage",
  });
  sensors.push({
    channel: 500,
    type: DataTypes.TYPE.ANALOG_SENSOR,
    unit: DataTypes.UNIT.ANALOG,
    value: percent < 20 ? 0 : 1,
    name: "Refill Status",
  });
}

let distance = buffer.readUInt16BE(2) / 10;
//If distance is 2cm it indicates an invalid reading so we drop it.
if (distance != 2) {
    //Use range from 2.5 volts to 2.8 volts to calculate battery percent
    let minValue = 2500;
    let range = 300;
    let battery = (buffer.readUInt16BE(0) & 0x3FFF) - minValue;
    let batteryPercent = Number((Math.min(Math.max(battery, 0), range) / range * 100).toFixed(2));
    sensors.push({
        channel: 5,
        type: DataTypes.TYPE.BATTERY,
        unit: DataTypes.UNIT.PERCENT,
        value: batteryPercent,
        name: 'Battery'
    });
    sendLevel(distance);
  Decoder.send(sensors);
}

Decoder.saveSession(session, SESSION_EXPIRES);
Decoder.done();
