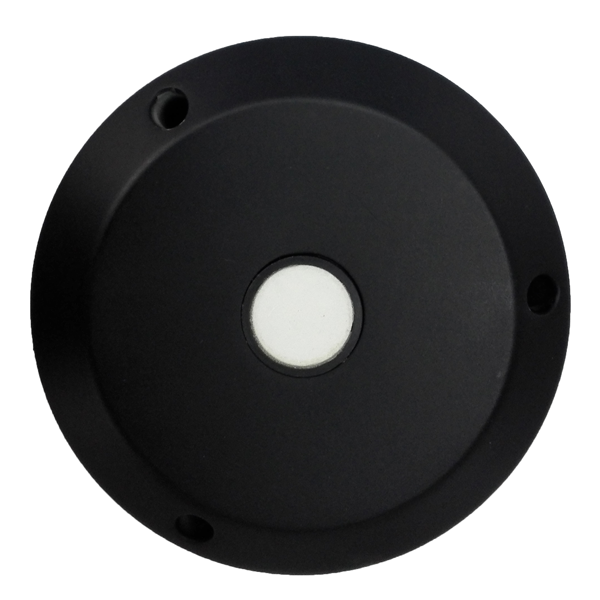

Dingtek Bin Sensor

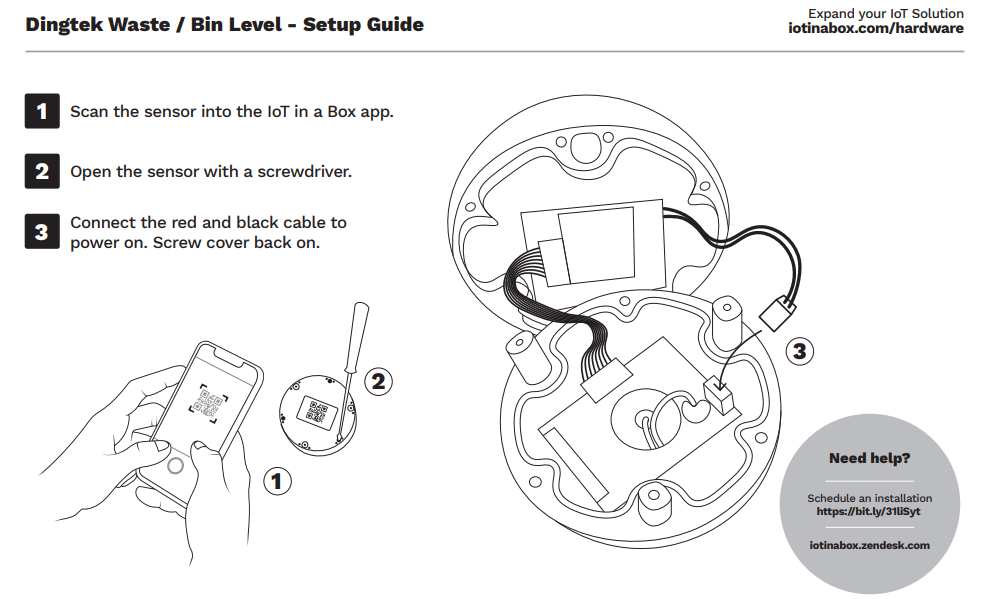

Activation

1. Open the sensor with a screwdriver

2. Connect the red and black cable to power on

3. Screw the cover back on

Installation

Reset

1. Remove the screws from the bottom of the Dingtek unit

2. Split the two halves apart

3. Disconnect the red and black cables

4. Wait 10 seconds

5. Connect the red and black cable to power on (you’ll see a light on the circuit board when you connect the cables back together)

6. Screw the cover back on
